Swivel TV Wall Mount Bracket for 26 32 40 42 50 52 55 Inch 3D LCD LED Plasma Television Full Motion tilting UK

*** Please Check Your TV VESA Measurements Are Compatible Before

Purchase ***

How to choose your mount?

1. Before purchasing a TV mount, make sure what kind of TV mout do you want. A Tilt & Swivel Mount?, A Tilt Mount?, A Swivel Mount? or A Slim and Low Profile Mount?

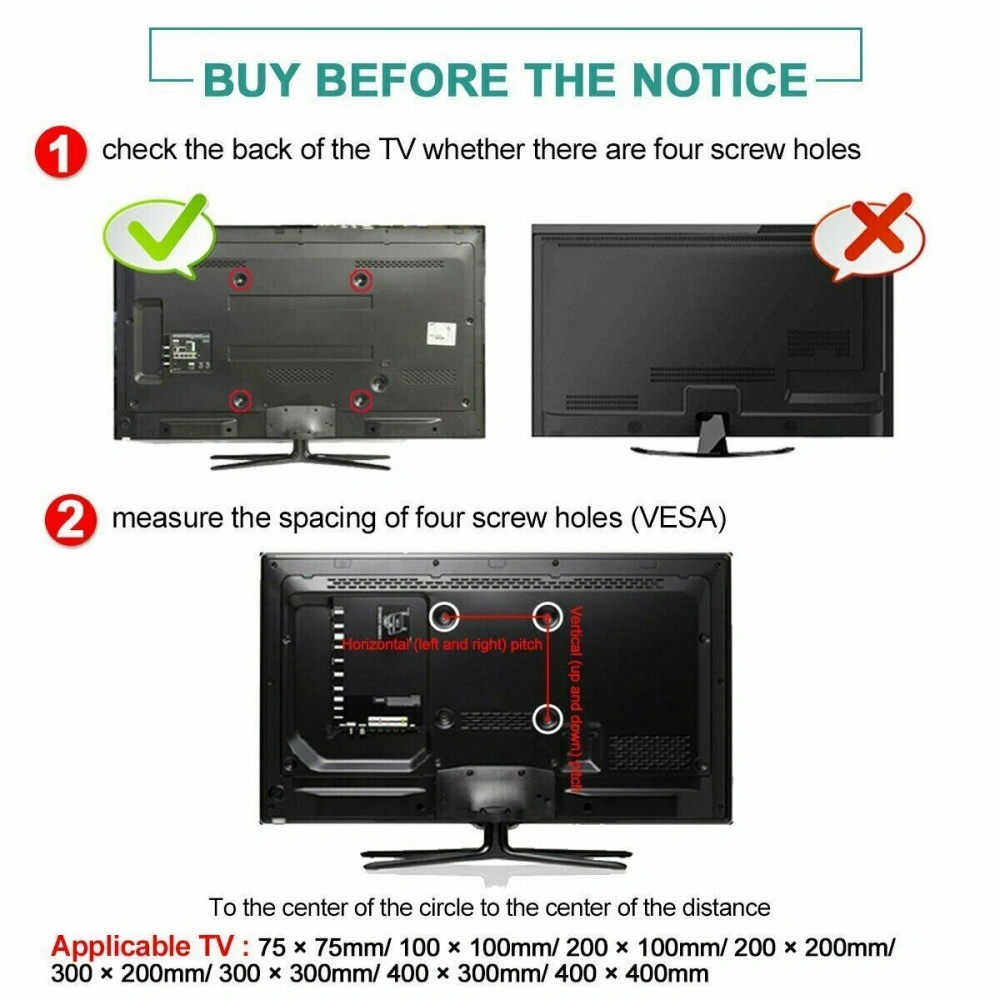

2. Measure your TV and chose a suitable mount to fit your TV. First, measure the height and weight between the screw holes on the back of your TV, and make sure that your measurements are SMALLER than the MAX Fitting hole distance; second, measure the height and weight of your TV, and make sure that your measurements are Larger than the mount dimensions.

3. Mainly according to the hole level specification, the TV size is for reference only.

Features:

Support most of 26"-55" (26"27"30"32"36"37"40"42"46"47"49"50"52"55") flat TV HDTV.

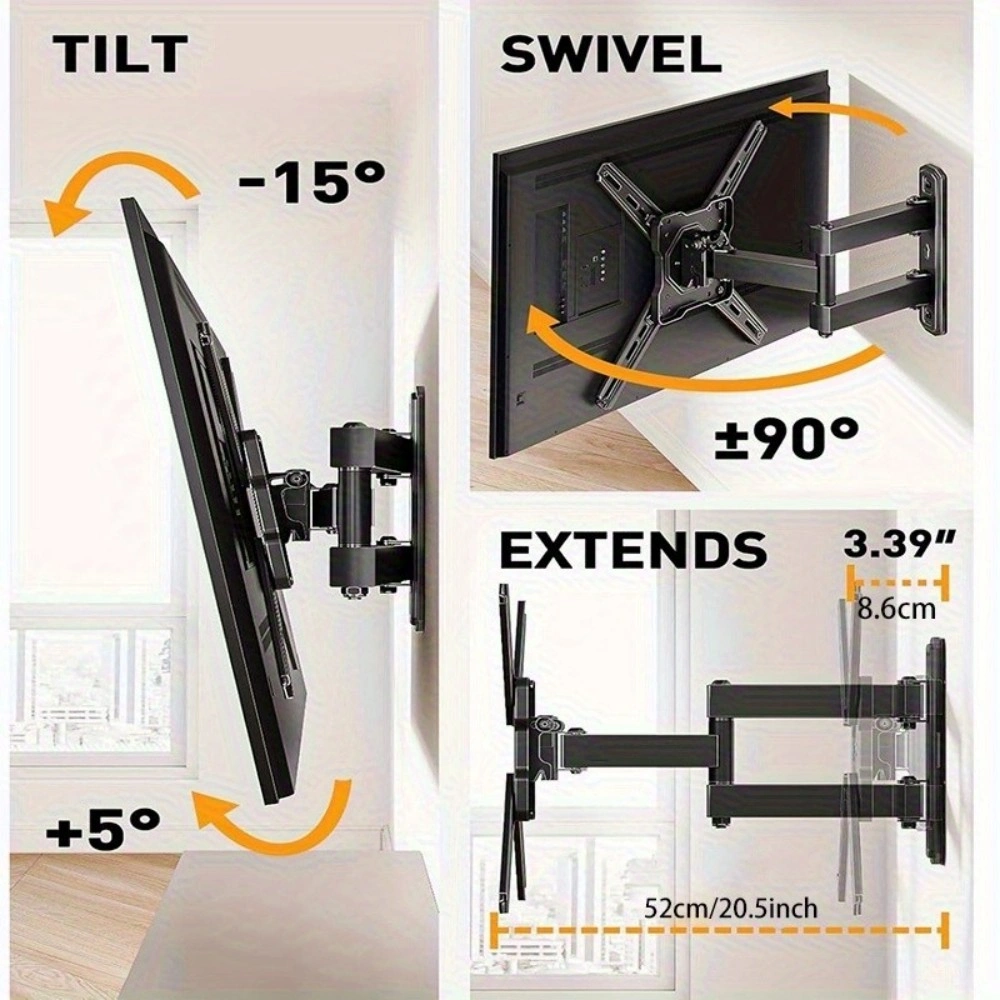

Full Motion: 180° Left to Right Range of Motion

Heavy duty steel construction supports loading capacity up to 22KG.

Safety screws ensure a secure TV position to wall bracket that avoids movement.

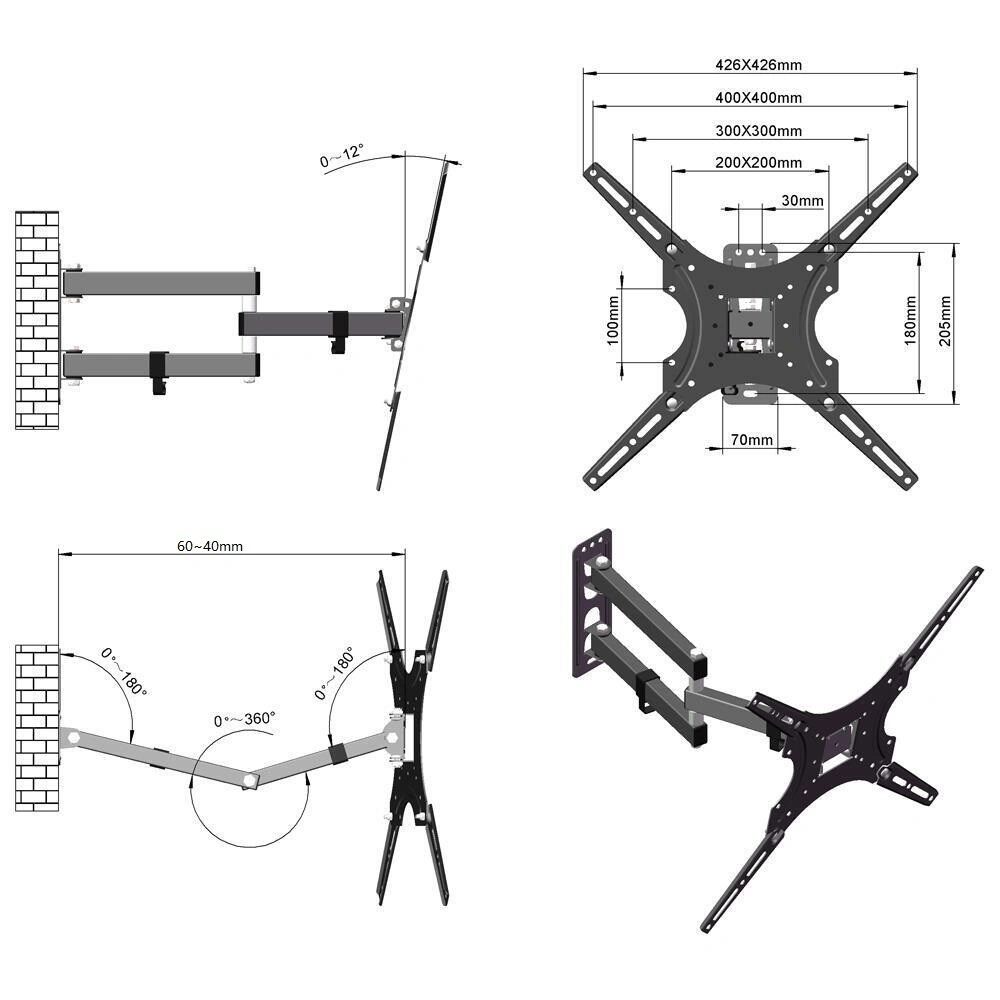

Fits VESA mounting hole patterns:400mm x 400mm max

400x400/300x300/200x200/200x100/150x150/100x100/75x75mm

Specifications:

Model: TMX400

Type: Mount

Supportable Display Size: (26-55)" / (66.04-139.7)cm

Tilt Range: -5~ 12°

Swivel: 180°

Rotation: 180°

Max VESA Mounting Pattern: 400 x 400 mm

VESA compliant:

400mm x 400mm (16"x16")

300mm x 300 mm (12"x12")

200mm x 200 mm (8"x8")

200mm x 100 mm (8"x4")

100mm x 100 mm (4"x4")

75mm x 75 mm (3"x 3")

Distance Between TV and Wall: 60mm-450mm

Load Capacity: 48.5lb / 22kg

Material: Cold Rolled Plate

Surface: High Temperature Paint Piano

Color: Black

Package Includes:

1x TV Wall Mount

1x Standard hardware kit (The Screw kit is standard. Don't make sure fit all the TV models. Please buy one kit if don't fit)

1x User Manual
