Gold Coilovers Suspension Kit for Infiniti M35x M45x 2006-2010 G35x G37x 2003-2013 AWD Adjustable Struts

Application:

Fit For Infiniti M35x 06-10 AWD

Fit For Infiniti M45x 06-10 AWD

Fit For Infiniti G35x 03-08 AWD

Fit For Infiniti G37x 08-13 AWD

Note:

1.Will not fit RWD model.

2.The rear is true coilovers instead of divorced coils.

Specification:

Top mounts: Front and rear standard rubber top mounts

Damping adjustable: Not available

Camber adjustable: Not available

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Spring Rate Front: 12kg/mm (672 lbs/in)

Spring Rate Rear: 10kg/mm (560 lbs/in)

Spring length Front: 160 mm

Spring length Rear: 200 mm

Front spring inner diameter: 62 mm

Rear spring inner diameter: 62 mm

Spring Preload advised: 7-10 mm

Color: Golden body with black spring

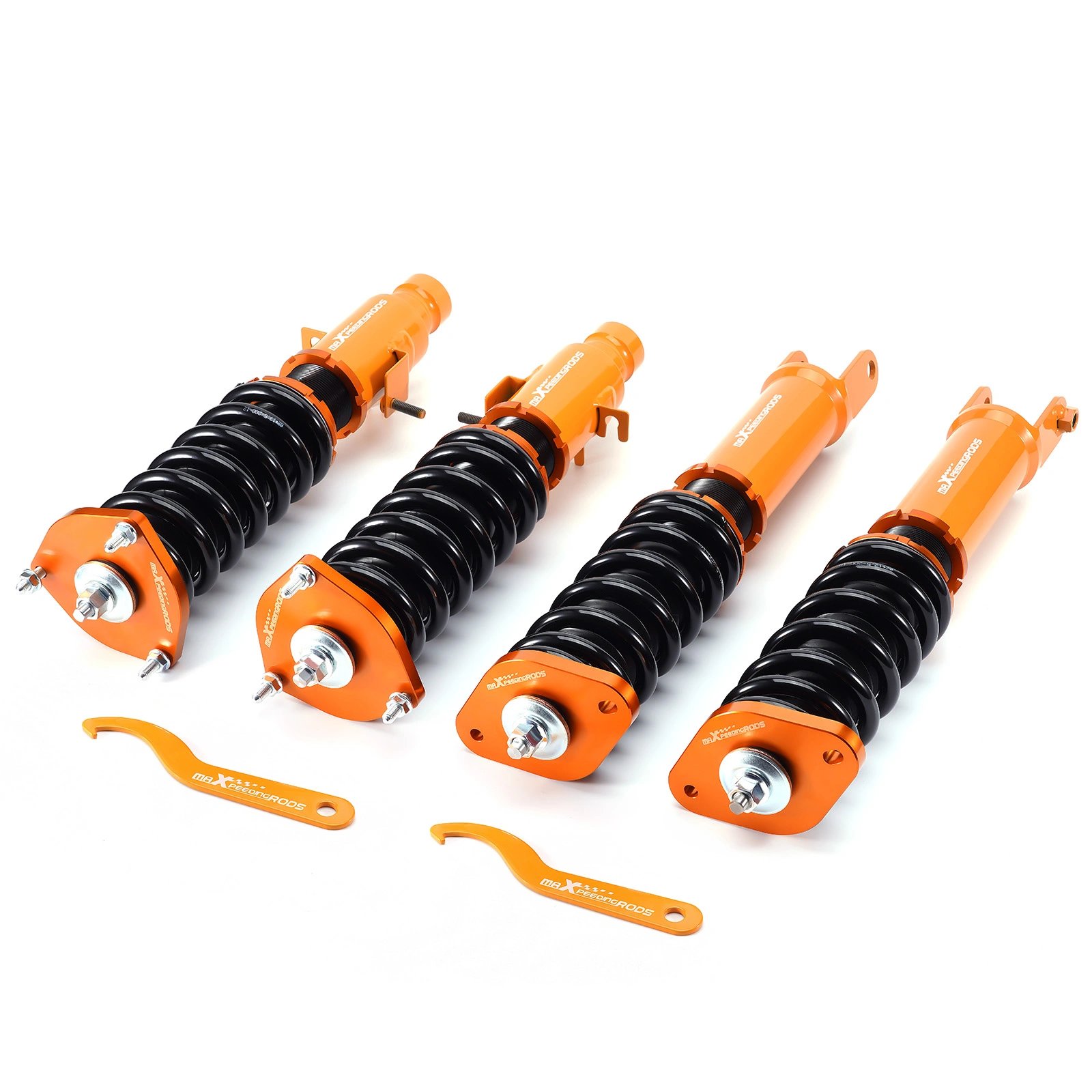

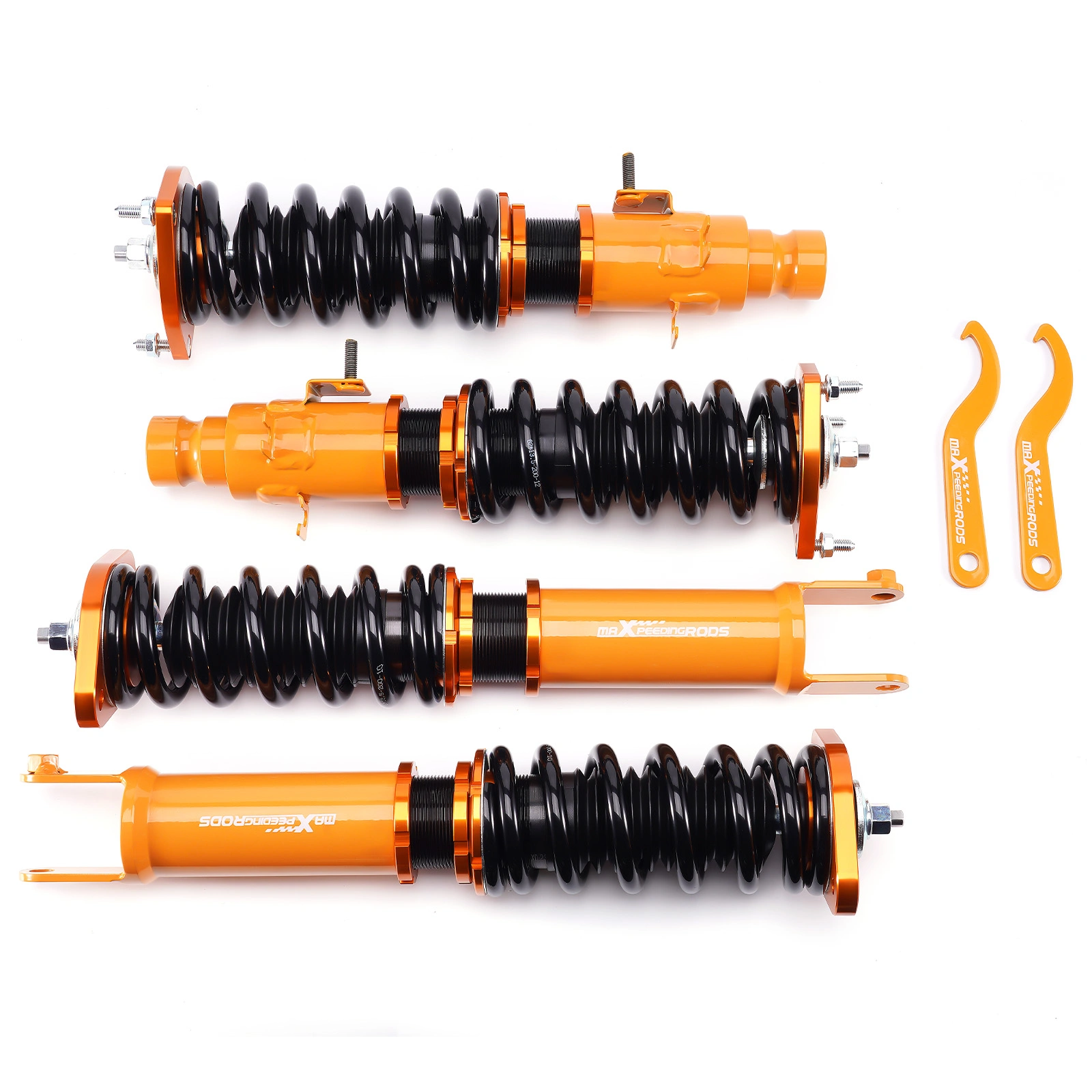

Package included:

2x Front coil-overs

2x Rear coil-overs

2x C spanners

Feature：

1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance

2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

6. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.

7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Note：

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.

Notice：
1.California Prop 65 Warning

2. Authority ID：MXR02FXSY（Very important, please do not delete）
