Coilover Coil Spring Struts Fit Honda Civic 2006

Application

Fit For HONDA CIVIC & Si VIII 2-door coupe (FG1/FG2) 2006-2011

Fit For HONDA CIVIC & Si VIII 4-door sedan (FA1/FA2/FA3/FA4/FA5, North America only) 2006-2011

Fit For HONDA CIVIC & Si VIII 4-door sedan (FD1/FD2/FD3/FD4/FD6/FD7, International model) 2006-2011

Fit For Acura CSX 4-door sedan（Canada）2006-2011

Note: not for the Mugen trim level.

Specification

Front top mount: Pillow ball with camber plate

Rear top mount: OE top mount required

Damping adjustable: Not available

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Camber adjustable: Available

Spring rate Front: 7 kg/mm (392 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Front spring inner diameter: 70.5mm

Rear spring inner diameter: 70.5mm

Spring length Front: 200 mm

Spring length Rear: 160 mm

Spring Preload advised: 7-10 mm

Color: Blue body with black spring

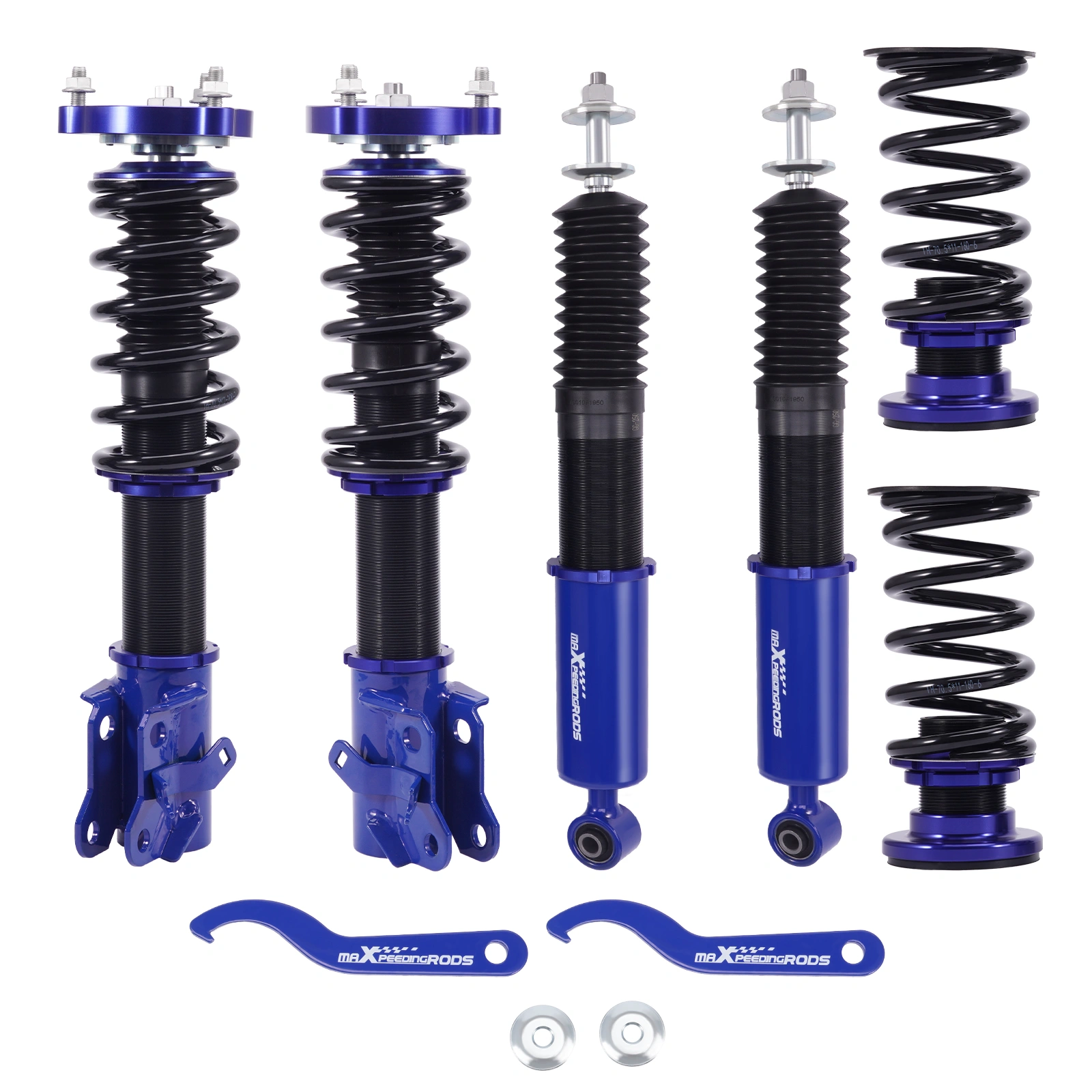

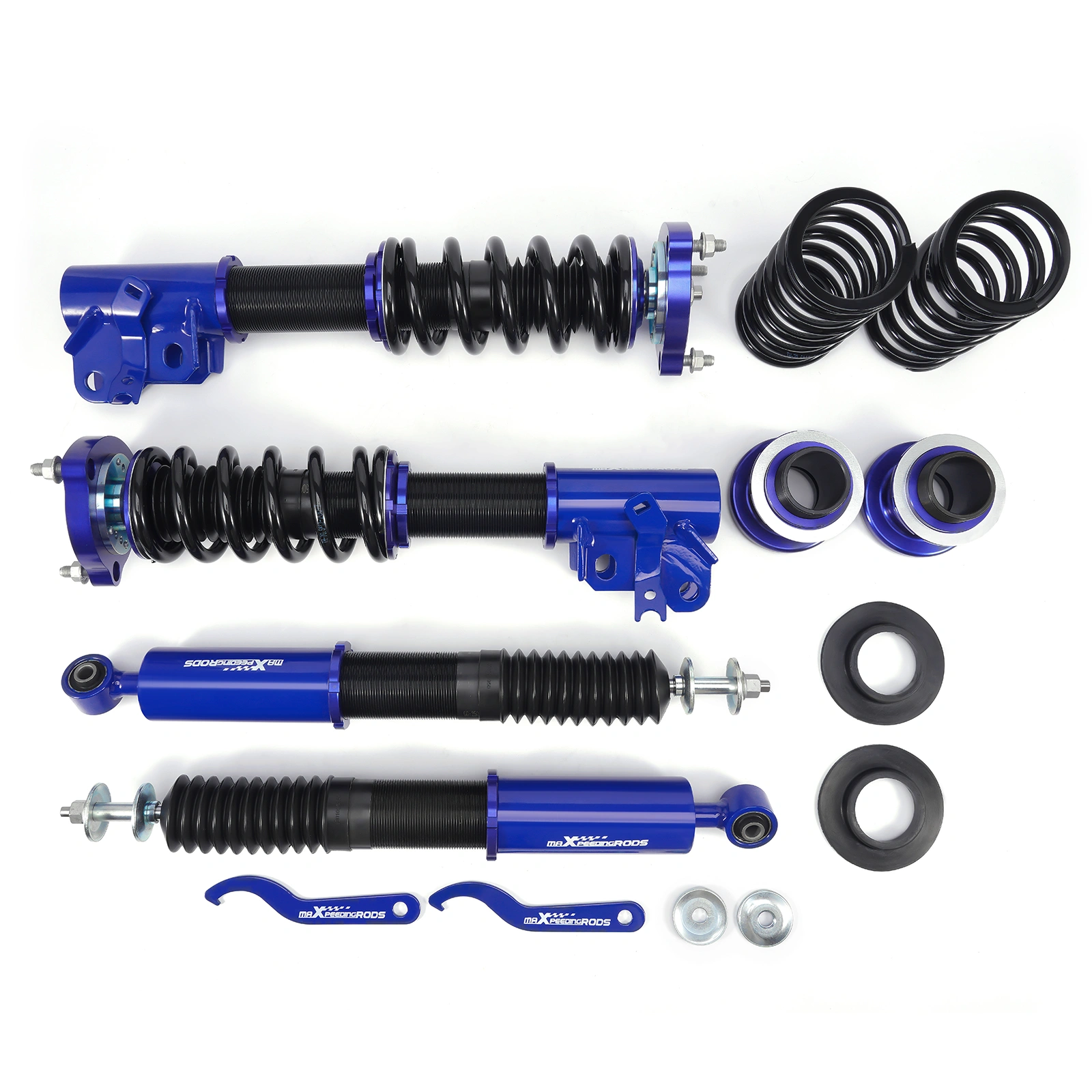

Package included

2x Front coil-overs

2x Rear coil-overs

2x C spanners

Feature

1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance

2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

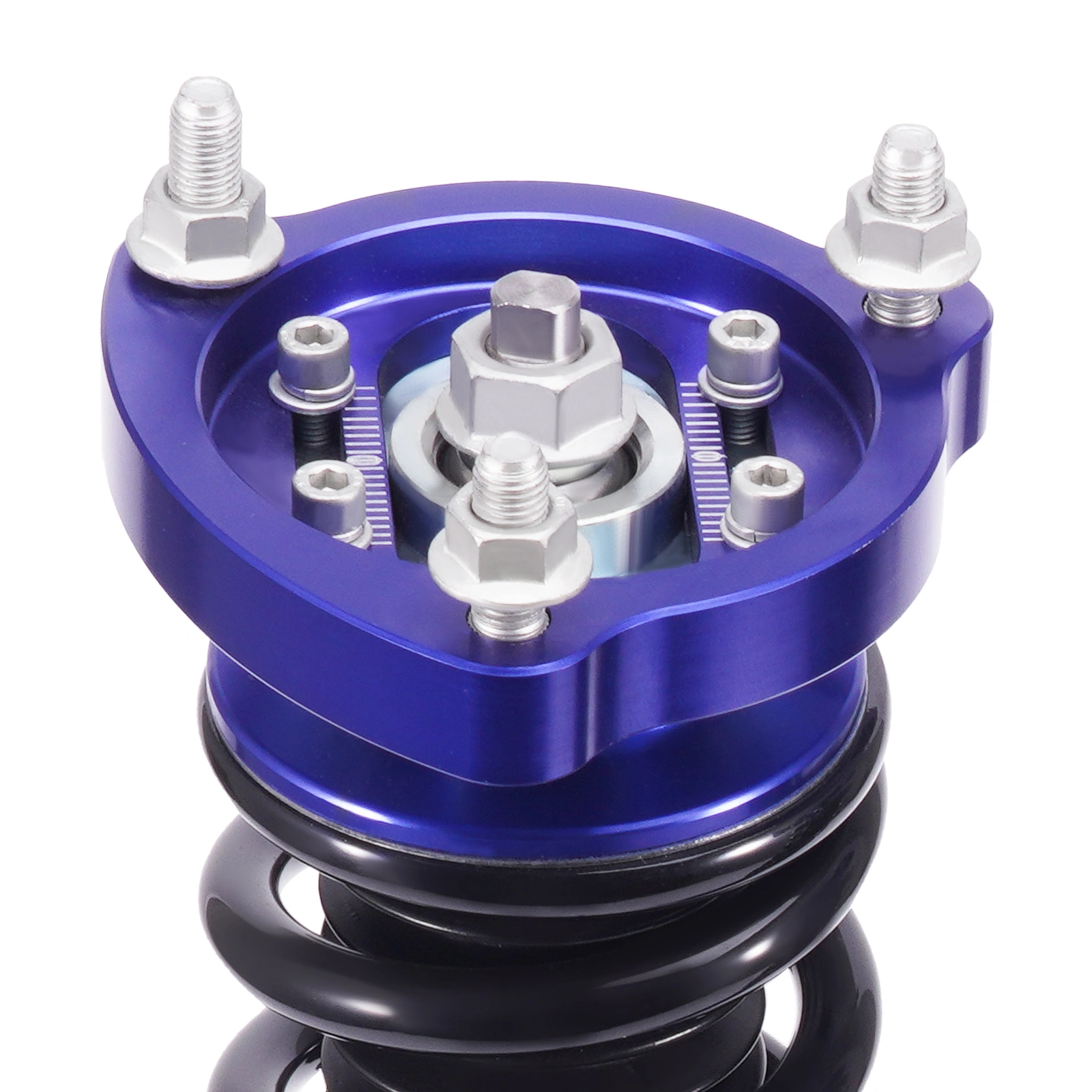

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

6. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.

7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.

Notice
1.The coilovers kit will "Lower your car" and does not keep to the original ride height.

2.California Prop 65 Warning

3. Authority ID：MXR02FXSY
