420CC 15HP 8KW Petrol Engine Electric Start Horizontal Stationary 4-Stroke OHV Gas Motor

Highlights

---------------------------------------------------------------------------

Powerful Engine: Our petrol engine is a 420cc 4-stroke OHV engine that gives you plenty of power and ensures you can get the job done quickly and easily.

High Fuel Efficiency: OHV design for improved power delivery and fuel efficiency.

Smooth Performance: Ball bearing crankshaft for greater stability and precision machined components result in lower vibration.

Easy Operation and Maintenance: Ergonomic easy-grip recoil rope design, easy throttle control, easy-access spark plug.

Versatility: Our engines can be used in a wide range of applications such as go-karts, compressors, lawn mowers, water pumps, pressure washers and more.

A low oil sensor shuts off the engine if the oil level reaches a level too low for safe operation.

Dual Start: Our engine is specially designed with electric starter, just turn the key and you can start the engine easily. In addition, a recoil starter offers you a safe double start. (Battery not included)

Technical data

Model: MXR420E

Engine type: Single cylinder, 4-stroke, forced cooling, OHV

Rated power (kW): 8

Bore x stroke (mm): 90 x 66

Displacement: 420 cc

Compression: 8 : 1

Starting method: Recoil/Electric

Power (HP): 15

Fuel type: Petrol

Fuel tank capacity (l): 6

Oil capacity (l): 1.1

Dimensions L*W*H (mm): 500*445*500

Shaft orientation: Horizontal

CE certified: Yes

Euro V certified: Yes

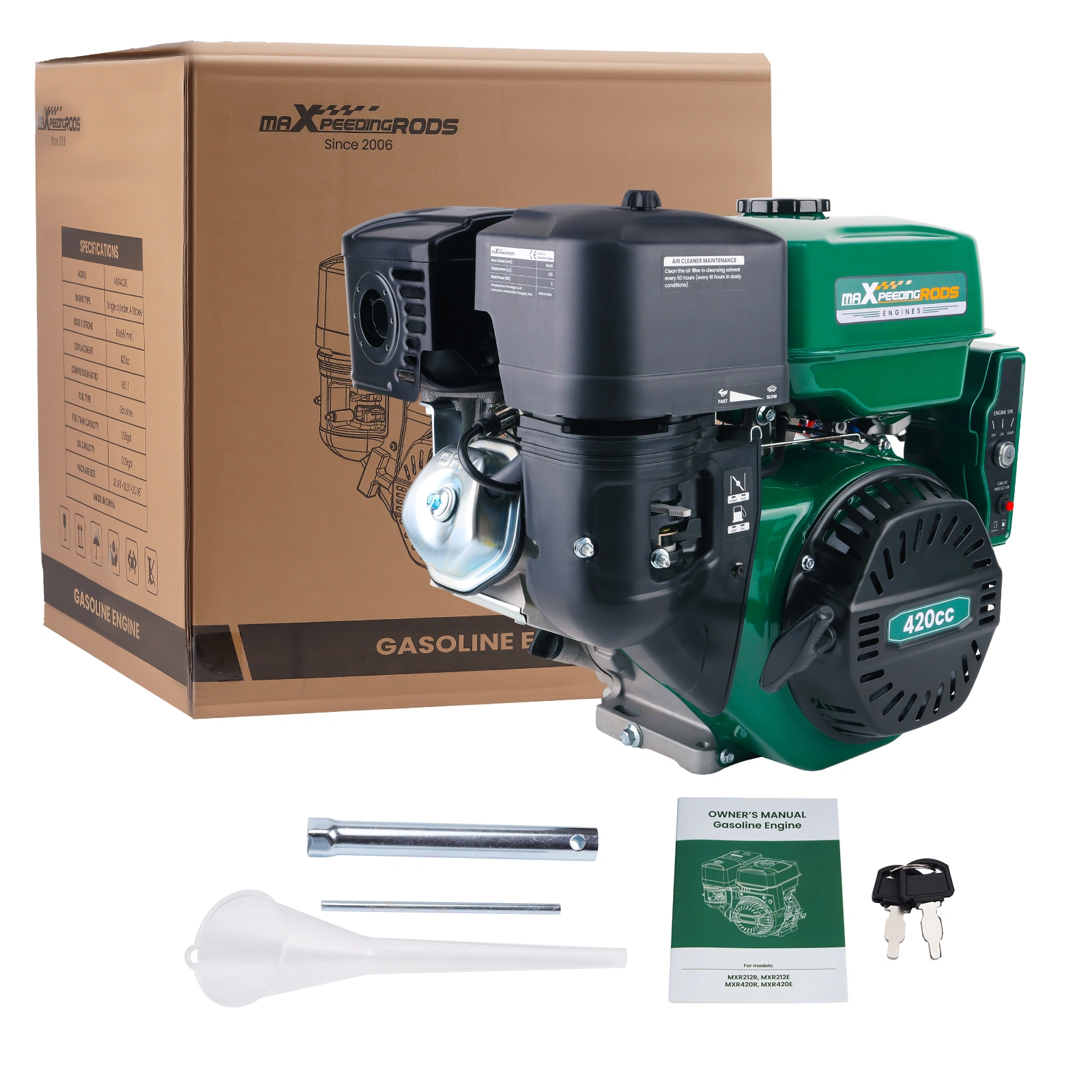

Scope of delivery:

--------------------------------------------------------

Petrol engine ( 1 )

Spark plug socket wrench ( 1 )

Oil funnel ( 1 )

Instruction manual ( 1 )

Starting key ( 1 )

Notes:

---------------------------------------------------------------------------

1. Do not pull the pull rope to start the machine without adding oil. Starting the engine without adding oil may cause permanent damage to the internal engine components.

2. All engines are factory tested for functionality and may have minimal oil residue or fuel odor, which is a normal phenomenon.

3. Installation manual is NOT included; professional installation is highly recommended.

4. Do not remove or modify any engine parts. (e.g. air filter, throttle assembly, muffler, etc.)

5. An engine's exhaust contains poisonous carbon monoxide that you cannot see or smell. Inhaling carbon monoxide can KILL YOU WITHIN MINUTES. To avoid carbon monoxide poisoning, follow the manufacturer's instructions when operating an engine.
