【Introduction For the Generator】
Inverter Power Generator vs Traditional Generators：
Inverter generator well suited for electrical equipment that is sensitive to operation. The inverter generator adjusts its output according to the power of the connected terminals, thereby reducing energy consumption and working noise. Compared with traditional generators, inverter generators have the advantages of low noise, light weight, small displacement, small size, low fuel consumption and more stable voltage.
Inverter generators have high efficiency and stable output waveform, making them ideal for operating certain products such as precision equipment and valuable instruments (e.g. mobile phones, air conditioners, TVs, microwave ovens, etc.).
Application:
Suitable for camping, outdoor parties, garden courtyards, outdoor weddings, RV travel, construction sites, as an emergency power supply for family power outages in extreme weather conditions, etc. (Please use in a ventilated environment.)
Specification：
Model MXR3500
Type Inverter Generator
Power 3000W-3300W
Voltage 230V 50HZ
Net weight 21kg/47lbs
Generator size 48×29×44 cm (L*W*H)
Starting system Pull starter
Power supply Gasoline
Oil type SAE 10W30 (recommended)

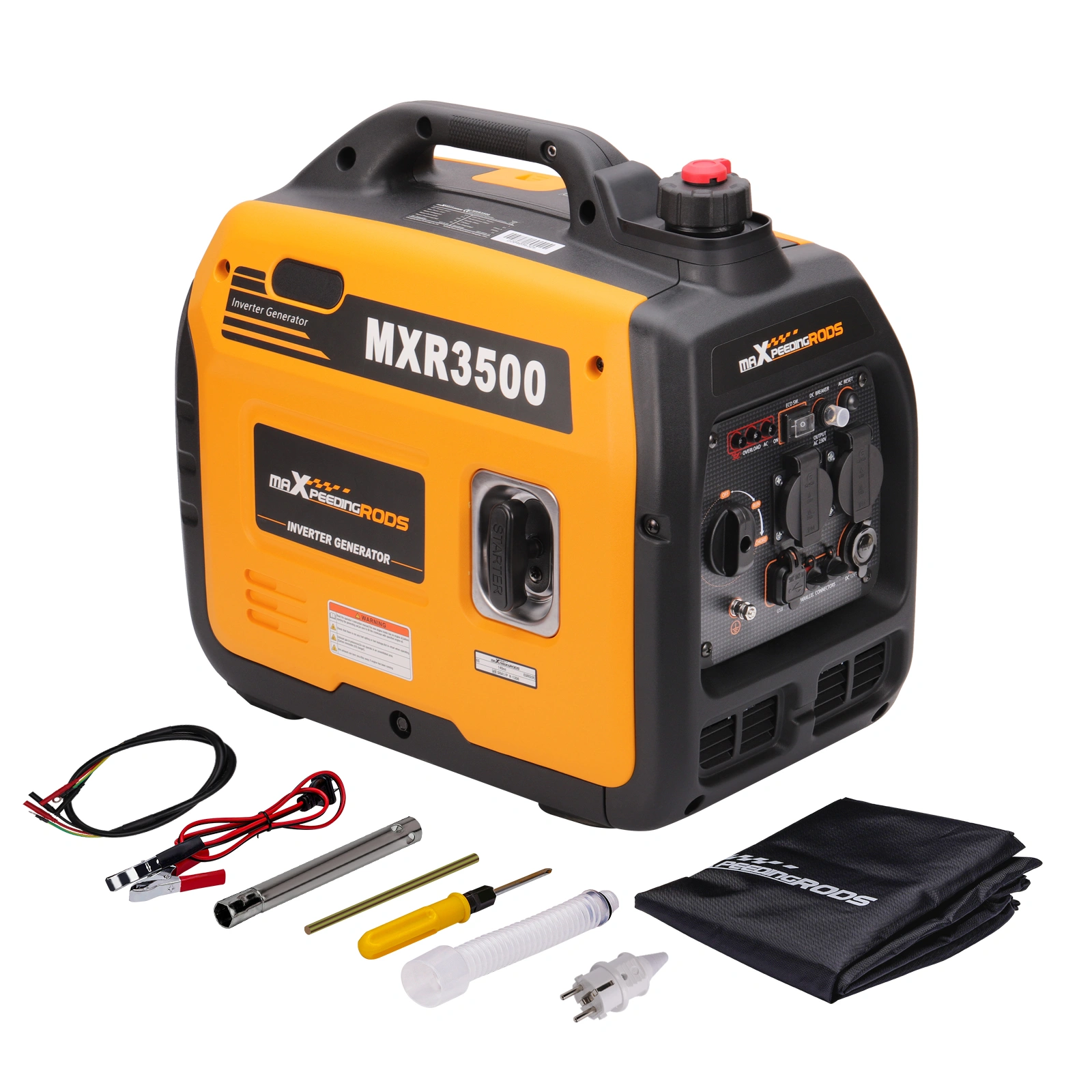

Package included:
Generator 3.0 kW/ 3.3 kW
Euro plug
Oil filling funnel
Screwdriver
Cigarette lighter plug
Spark plug socket
Generator parallel cable
Owner's manual
Generator Cover
MXR3500 Detail
Certificate & Function
UKCA/CE certified according to MD and EMC directive/ EURO V conformity/ ISO 9001:2015 certified.
With overload warning and low oil protection for safe operation even over a long period of time.
Eco mode: The engine speed automatically and precisely adjusts to the corresponding load.
LED display for operating status, oil level warning and AC breaker & reset breaker.
Two inverter generators can be connected together, but if the power is too high, a parallel kit is required.
Notes:
Applicable altitude:
1. Areas below 1500 meters. Above 1500 meters will affect its stability and performance.
2. Generator set optimum working environment temperature: 25℃
Normal working temperature: -15℃ to 40℃
If the generator set is used below -15℃, its starting ability will be affected and the generator set will be difficult to start.
If the generator set is used above 40℃, its performance and safety will be affected.
Note:
The engine does not contain engine oil when shipped. But all inverter generators are fully tested at the factory and may contain small amounts of oil or fuel residue.
Every time you change or add engine oil, be sure to start it again after adding it, otherwise the machine will not work.
Attempting to start the engine without adding engine oil will cause permanent damage to the internal engine components.
*The exhaust gases from a generator contain poisonous carbon monoxide that you cannot see or smell. Inhaling carbon monoxide can kill you in minutes. To avoid carbon monoxide poisoning, follow the manufacturer's instructions when operating a generator.
NEVER use inside a house or garage, EVEN IF doors and windows are open!
Use only OUTSIDE and away from windows, doors and vents!
To avoid other generator hazards, PLEASE READ THE OPERATOR'S MANUAL BEFORE USE.
NOTIECE:
Authority ID：MXR02FXSY
Notice：California Prop 65 Warning
