Technical information
--------------------------------------------------------------------------------------------------
• Rated power (watts): 1000 W
• Maximum power (watts): 1200 W
• Empty weight: 11.5kg/25lbs
• Voltage regulation: Inverter（Pure sine waves：Clean power for sensitive devices）
• Voltage: 230 V / 50 Hz
• Operating current: 4.3A
• Peak current: 5.2A
• Operating mode: Gasoline (recommended: Unleaded gasoline)
• Oil type: SAE 10W30 (recommended)
• Engine type: 4-stroke OHV engine
• Displacement: 57cc
• Tank capacity (oil): 2.4 liters
• Quarter load running time: 7h
• 50% load running time: 6h
• Noise level (at a distance of 7 meters): 58 dB
• Dimensions (Lx W x H): 42×24×40cm
• LED warning for low oil level: Yes
• Overload LED alarm: Yes
• Output Ready LED alarm: Yes
• Eco mode: Yes
• Parallel function: Yes
• Digital counter: Yes
Highlights
---------------------------------------------------------------------------------------------------
• The inverter power generator MXR1500 not only supplies power for household appliances (NEVER use indoors) and power tools but also serves as an emergency power generator in the event of a power outage, perfect for outdoor camping / camping, outdoor party, garden yard, outdoor wedding, RV travel, emergency use, etc. Thanks to its compact design, it is ideal for all purposes when camping or around the garden. You will never have to be without power again.
• Inverter technology: THD value ≤ 3, output pure sine wave, can drive sensitive electronic devices such as mobile phones, laptops, video cameras, etc.
• Pure copper winding motor, performance and quality are better than aluminum motor. More durable, not easy to burn out the motor; Low resistance, low heat generation, more energy saving.
• Light weight, easy to carry：11.5kg/25lbs, very suitable for outdoor activities
• Non-slip anti-vibration feet
• 1 x 230V 16 amp sockets, 2 x USB ports
• With overload warning and oil shortage protection for safe operation even over a longer period of time. If the inverter is overloaded, the reset protection switch is triggered. LED display for operating status, oil level warning and AC breaker & reset breaker.
• with MD/EMC CE certification, Euro V compliant, designed to ISO 9001:2015 QMS certified.
• Eco mode: The engine speed automatically and precisely adjusts to the corresponding load. With automatic engine speed regulation, you can save fuel, increase the engine life and reduce noise emissions.
• Easy to use, and support for parallel connections. (Two inverter generators can be connected together, but if the power is too high, a parallel kit is required.)
• Intelligent digital display meter, easy to monitor voltage and frequency power, display cumulative running time, convenient for later generator maintenance.

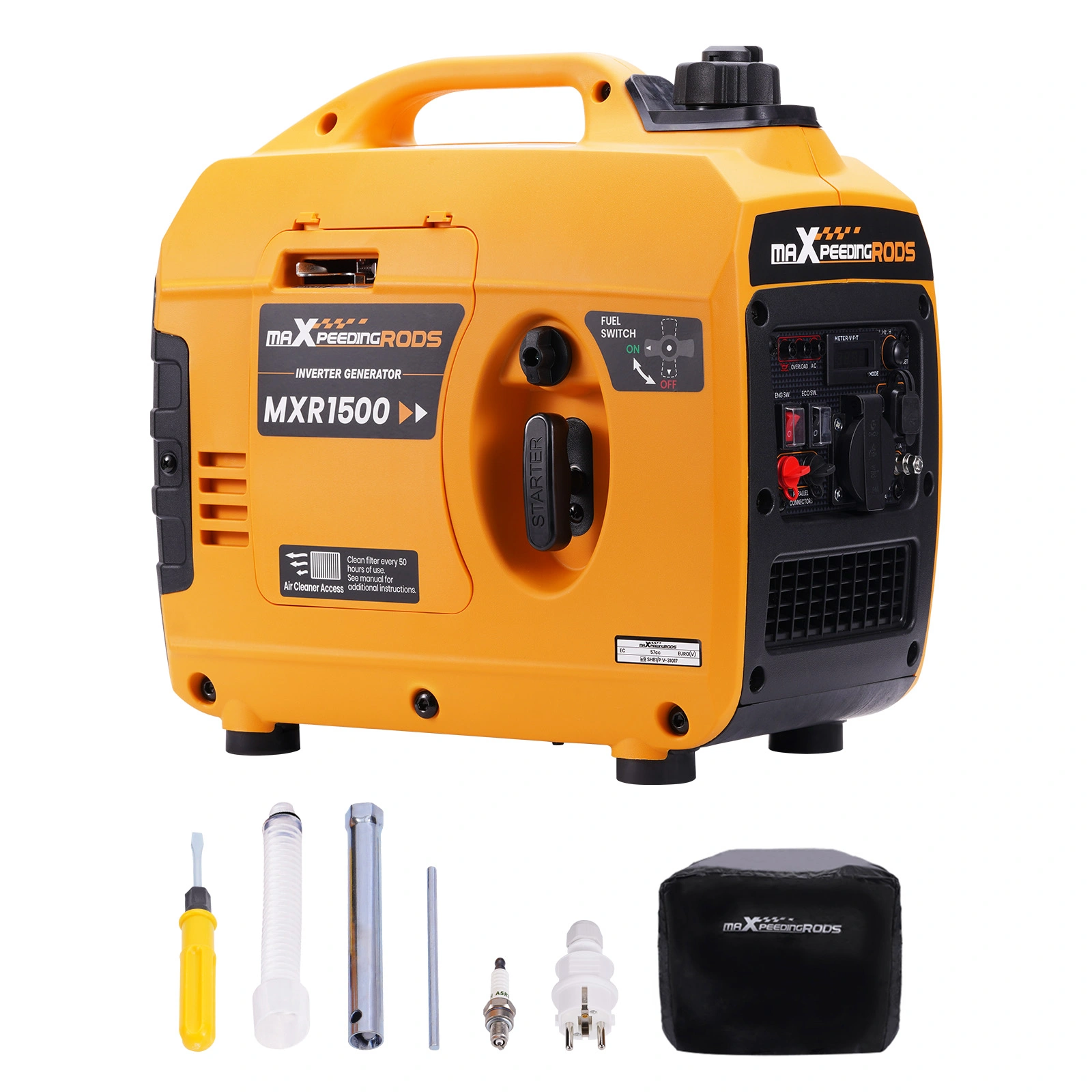

Scope of delivery
---------------------------------------------------------------------------------------------------
• Generator 1000W-1200W:
1 x Inverter Generator
1 x User Manual
1 x Spark Plug Socket Wrench
1 x Oil Funnel
1 x Screwdriver
1 x EU Plug
1 x Generator Dust Cover
Notes:
---------------------------------------------------------------------------------------------------
Applicable altitude:
1. Areas below 1500 meters. Above 1500 meters will affect its stability and performance.
2. Optimal working environment temperature of the generator: 25℃
Normal working temperature: -15℃ to 40℃
If the generator is used below -15℃, its starting ability will be affected and the generator will be difficult to start.
If the generator is used above 40℃, its performance and safety will be affected.
Note:
The engine does not contain any engine oil when delivered. But all inverter generators are fully tested at the factory and may contain small amounts of oil or fuel residue.Every time you change or add engine oil, be sure to restart it after adding it, otherwise the machine will not work.Attempting to start the engine without adding engine oil will cause permanent damage to the internal engine components.*The exhaust fumes from a generator contain poisonous carbon monoxide, which you cannot see or smell. Inhaling carbon monoxide can kill you in minutes. To avoid carbon monoxide poisoning, follow the manufacturer's instructions when operating a generator.
NEVER use inside a house or garage, EVEN IF doors and windows are open!
Use only OUTSIDE and far away from windows, doors and vents!
To avoid other generator hazards, PLEASE READ THE OPERATOR'S MANUAL BEFORE USING
NOTIECE:
Authority ID：MXR02FXSY
Notice：California Prop 65 Warning
